StepCeiling // Baffles

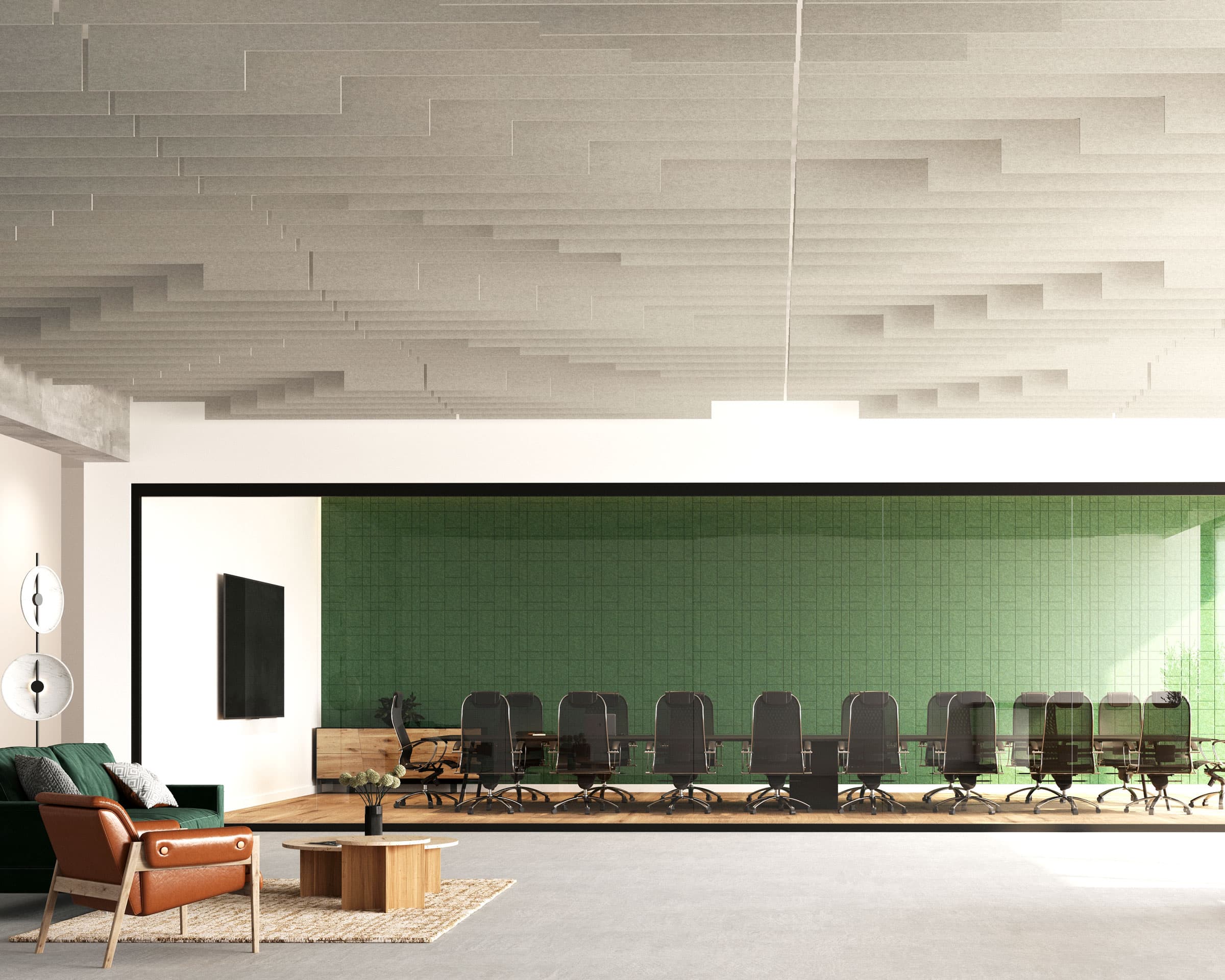

A stair-step approach to providing movement, Step acoustic ceiling baffles provide plenty of areas to capture unwanted sound. The series of 6 baffles installed in various sequences provide interesting textural effects.
Colorways
Shiraz
SH63
Quartz
QU67
Celery
CE65
Flint
FL64
Granite
GR62
Almond
AL55
Walnut
WA56
Turmeric
TU60
Umber
UM54
Flamingo
FL61
Sea Salt
SE57
Currant
CU59
Sencha
SE58
White
WH12
Pearl
PE21
Ivory
IV11
Platinum
PL04
Metal
ME03
Grey
GR02
Slate
SL27
Charcoal
CH01
Piano Black
PI24
Pistachio
PI25
Peach
PE19
Lilac
LI13
Periwinkle
PE23
Marine
MA15
Iris
IR10
Thistle
TH28
Oregano
OR18
Kale
KA12
Denim
DE09
Midnight
MI16
Peppercorn
PE22
Popcorn
PO26
Carrot
CA08
Lipstick Red (Limited Availability)
LI14
Berry
BE06
Azure
AZ05
Peacock
PE20
Wasabi
WA29
Butter (Limited Availability)
BU07
Details
.75
Minimum Acoustic NRC Rating
Soundscaping with ceiling baffles is an easily installed method of building a sweeping mass of sound-absorbing surface into a space that is often sound reflective. At the same time, ceiling baffles offer designers an interesting opportunity to design this plane in anything from a very quiet to a quite dynamic expression of color and form.
Sustainability
We help designers, architects, and owners meet their clean building goals by testing all of our products against internationally recognized environmental and human safety standards to protect our employees, our customers, and future generations. Read more about our sustainability work here.
Specs
Surface
Ceiling
Composition
100% Polyester
Material
FilaSorb™
Recycled Content
60% minimum
NRC Rating
.75 minimum
Thickness
1/2″ (12mm)
Dimensions
See specification sheet for a full list of available sizes
Fire Tests
AS ISO 9705: 2003 Group 1, ASTM E84-17a Class A, ISO 9705: 1993 Group 1
CAN/ULC S102-2018
Lead Time
3-6 weeks
Origin
Manufactured and Assembled in the USA
Custom
Acoufelt design engineers and fabricators stand ready to serve on your design team, marrying their deep understanding of the art and science of soundscaping to your vision with custom cutting, printing, shaping, and technical advice to soundscape your designs. Let us help you.
How to specify
1. Choose your surfaces.
Soundscape your space by placing enough sound absorption where it has the greatest impact. Hint: adjoining surfaces with sound absorbing materials reduce reverberation faster.
2. Select a color, pattern, or cut.
Choose from our broad palette and pattern gallery, or use our custom capabilities to design your own.
3. Measure your installation space.
Take the dimensions and get in touch so we can help you soundscape your space efficiently.
